API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig

Place of Origin : Shandong, China

Video outgoing-inspection : Provided

Material : Carbon steel

Mud Pump : Professional

Feature : High Efficiency

Product Name : API Oil Mud Pump

Standard or Nonstandard : Standard

MOQ : 1 set

Color : blue

Usage : Drilling Mud Pump Valves Assy

Brand Name : Zhong Rui Wei Fei

Packing : Wooden Cases

Type : Engine-pump Unit; Mud Pump;

Application : Oil Drilling Rig Mud Pump

Core Components : 1. Diesel engine 2. Transmission Box 3. Universal

MOQ : 1 Unit

Price : $100000-$300000

Machinery Test Report : Provided

Warranty : 1 Year

Contact Now

Why choose us! R&D capability: The company has 18 research and design personnel and nearly 100 authorized patents, demonstrating strong innovation capabilities.
Integrated services: As a comprehensive enterprise integrating research and development, design, production, sales, and service of marine oil and gas equipment, it has a complete industrial chain. Numerous certifications and honors: Recognized as a national high-tech enterprise and awarded numerous other honorary titles, it also possesses various authoritative certifications.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Special note: The models produced by our factory are personalized customized products, and the official published price is only a reference benchmark for the market, and does not have the effect of actual trading. If you need to obtain an accurate quotation, please contact us through official channels, we will be based on your technical parameter requirements, configuration selection and mass production scale, by the senior product consultant team to issue a one-to-one exclusive quotation plan.
Products Description
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
The pump unit is indeed the source of power in oil drilling operations. During the drilling process, it can efficiently transport high viscosity, high-density drilling fluids containing a large amount of solids under extreme pressure. It not only cools the drill bit, cleans the wellbore, assists in rock fragmentation, but also brings rock debris to the surface while maintaining pressure balance in the formation. This makes it an indispensable equipment in oil extraction.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Working principle Transporting drilling fluid (mud): The large amount of mud pumped provides crucial cooling and lubrication for the high-speed rotating and highly frictional drill bits and drill strings. Cleaning the bottom of the well: The powerful fluid flow impacts the bottom of the well, effectively removing the broken rock debris from the drill bit, preventing repeated cutting, and increasing the mechanical drilling speed. Rock debris carrying: By precisely controlling the displacement and flow rate, heavy rock debris is carried from the bottom of the well thousands of meters deep to the surface, keeping the wellbore clean. Wellbore pressure control: By adjusting the pump displacement and mud density, the wellbore pressure can be precisely controlled to prevent catastrophic accidents such as blowouts or well collapses. Power transmission: In downhole tools such as turbodrills or mud motors, the hydraulic energy of drilling fluid is converted into mechanical energy, providing additional torque to the drill bit.
Name
Engine-pump Unit;Mud Pump;
Brand
Zhongrui Weifei
Model
F500,F800
Material
Carbon Steel
Size
F500 Engine-pump Unit:8300x3150x3100mm;F800 Engine-pump Unit:8800x3550x3550mm;
Weight
F500 Engine-pump Unit:20t;F800 Engine-pump Unit:30t;
Characteristic
1.Diesel engine
2.Transmission BoX
3.Universal shaft Mud Pump:F-500.F-800
4.Charging Pump5.Control system
6.Base
7.Diesel engine sheild8.Diesel tank
9.Battery tank
10.Heat insulation of exhaust system

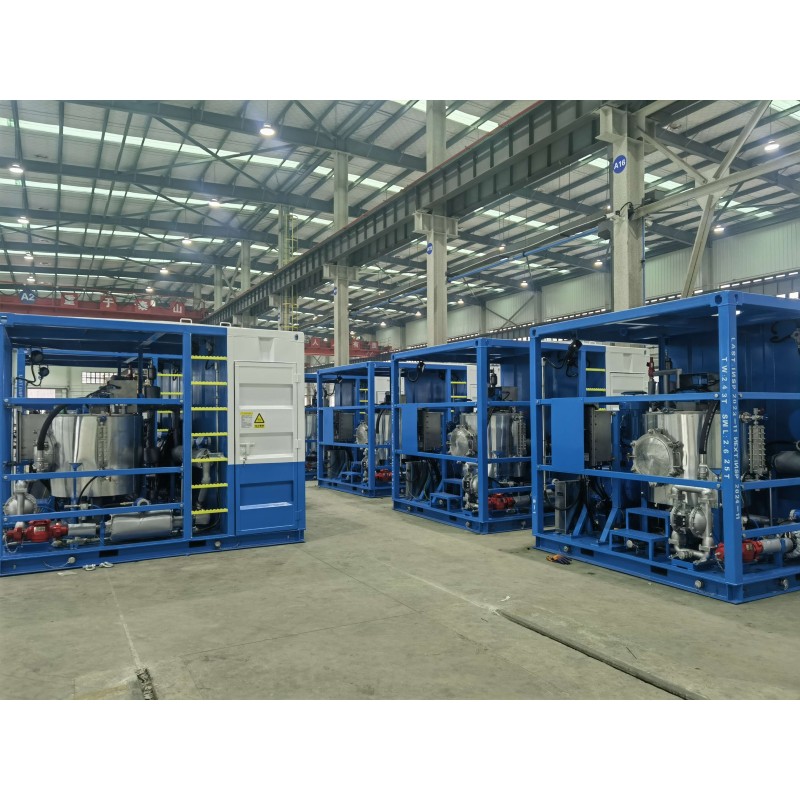

Product display
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Extremely high output pressure: To overcome the long pipeline friction in deep wells. Powerful power: Usually thousands of horsepower. Excellent wear and corrosion resistance: Dealing with highly abrasive drilling cuttings and chemically complex mud. Extremely high reliability and durability: Because once it malfunctions, the entire drilling operation will come to a standstill, causing huge losses.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Product application areas
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
The drilling and workover pump unit serves as critical equipment in oil and gas drilling operations. It not only cools the drill bit, cleans the well bottom and assists in rock fragmentation, but also transports cuttings to the surface while maintaining formation pressure balance. This indispensable equipment plays a vital role in petroleum extraction.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Packaging and shipping
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Wooden packing box is used for packaging, with anti-collision foam blocks inside, and the packaging method meets the export standard. Some important vulnerable components in the equipment will be treated separately to prevent collisions
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Our company
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Qingdao Zhongrui Weifei Marine Equipment Co., Ltd., founded in 2019 in Qingdao West Coast New Area, is a joint - venture of Ruiyuan Holdings Group and Kerui Group with a 300 - million - yuan registered capital. As a national high - tech entity, it masters the full value chain of marine oil and gas equipment, from R&D to after - sales service. Specializing in high - end intelligent oil and gas equipment for marine and underwater use, its main products include automated drilling and repair gear, production - enhancing equipment, ship - based nitrogen producers, and underwater wellhead Christmas tree support. Guided by the quality policy of "Pursuing Excellence, etc." and business philosophy of "Integrity, etc.", it is making strides towards its goal of making marine oil and gas equipment safer and more intelligent.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
Why Choose Us
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
We are one of the leading manufacturers globally and possess extensive experience. Our product range is highly flexible and we are constantly expanding it to meet the demands of our customers.
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
API Drilling Mud Pump System Engine Driven Mud Pump Skid For Oil Drilling Rig
FAQ
Q1: Are you a trading company or manufacturer? A: Firstly. we are a manufacturer, we have our own factory and engineers. Secondly, we have our own international trade teams to provide services for you. Thirdly, we provide the lifetime technology support and the best after-sale service. Q2: What is your term of payment? A: 30%T/T in advance and balance before shipment. 30% T/T in advance and Irrevocable L/C at Sight. Q3 How long is your delivery time? A: Depending on what type of machine you are purchased. Q4: What is your product quality assurance policy? A: We offer a warranty period of 1 year, free lifetime technology support. Q5: Do you offer OEM/ODM service? A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed technical specification and commercial quotation. Q6: Does your product used or new? RTS product or customized product? A:Our machine is new unit, and following your specific require to design and make it.
